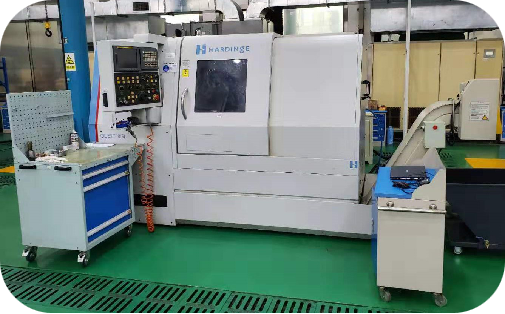

HARDINGE 8/51精密車削中心 Precision Turning Center

主要技術參數(shù)Main Parameters:
最大回轉直徑Maximum swinging diameter: 520 mm
最大車削直徑/長度Maximum turning diameter / length: 310/610 mm
卡盤/通孔Chuck / through hole: 1527/51mm
位置控制精度：0.0001mm （線性光柵尺、全閉環(huán)）
Position control accuracy: 0.0001mm (linear scale, full closed loop)
主軸轉速范圍Spindle speed range: 80-8,000 rpm
主軸徑跳/端跳Main shaft diameter jump/end jump: ≤0.4μm

HARDINGE 8/51 采用花崗巖床身，并配套有最高精度主軸系統(tǒng)，是當今世界最高轉速、最高精度的車削中心產(chǎn)品之一。
HARDINGE 8/51 uses granite beds and is equipped with the highest precision spindle system. It is one of the world's highest speed and highest precision turning center products.
